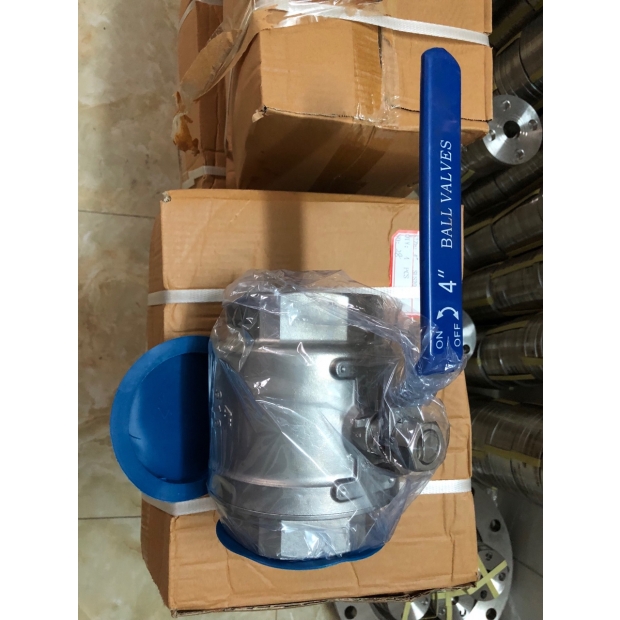

Van inox nối ren
Features
- Full port, 1/4’’ 4” (DN6DN100)
- Locking device handle (option)
- Thread type: ASME B1.20.1 (NPT),
DIN 259 / DIN 2999, BS 21,
ISO 288-1, ISO 7-1
Material List
|
No.
|
PARTS
|
|
|
MATERIAL
|
|
|
|
|
|
|
|
|
|
|
1
|
BODY
|
WCB
|
|
|
CF8
|
CF8M
|
|
|
|
|
|
|
|
|
|
2
|
SEAT
|
|
|
|
PTFE
|
|
|
|
|
|
|
|
|
|
3
|
BALL
|
CF8
|
|
CF8
|
CF8M
|
|
|
|
|
|
|
|
|
|
4
|
GASKET
|
|
|
PTFE
|
|
|
|
|
|
|
|
|
|
5
|
BONNET
|
WCB
|
|
CF8
|
CF8M
|
|
|
|
|
|
|
|
|
|
6
|
STEM
|
304
|
|
|
304
|
316
|
|
|
|
|
|
|
|
|
|
7
|
STEM WASHER
|
|
|
|
PTFE
|
|
|
|
|
|
|
|
|
|
|
8
|
PACKING
|
|
|
|
PTFE
|
|
|
|
|
|
|
|
|
|
9
|
WASHER
|
|
|
304
|
|
|
|
|
|
|
|
|
|
10
|
HANDLE
|
|
|
304+PVC
|
|
|
|
|
|
|
|
|
|
11
|
SPRING WASHER
|
|
|
304
|
|
|
|
|
|
|
|
|
|
12
|
NUT
|
|
|
304
|
|
|
|
|
|
|
|
|
|
